CARTRIDGE DOUBLE ACTING Ø15,0MM

CARTRIDGE DOUBLE ACTING Ø15,0MM

CARTRIDGE DOUBLE ACTING Ø15,0MM

Function : Double Acting

Nozzle size : 15

Screw thread fit : M20x1,5

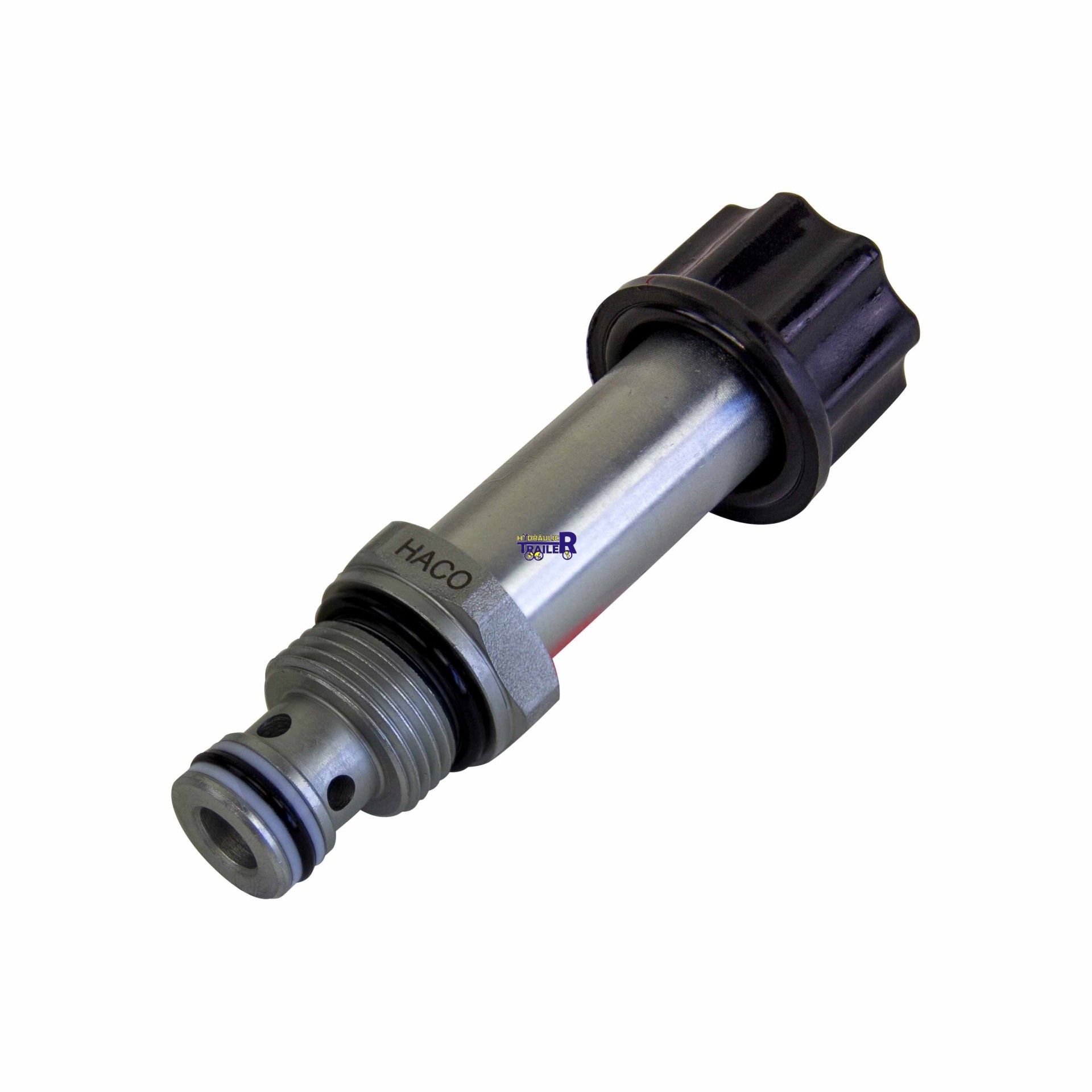

Valve Cartridge DA/Ø18/M20x1,5

Solenoid valve without coil

2/2 double-acting (DA)

Core Ø18mm

Thread M20x1,5mm

Product no. HACO : 2501498H

Suitable for: Bär Cargolift,Mariba

Reference numbers 0080694, 20907305, 101124863

Item fits for Tail Lift BAR CARGOLIFT, DAUTEL, MBB PALFINGER, SORENSEN, HYDAC WSM 06020Z-01-C-N-0

Tail Lift Type BC1000F2-A1 BC1000F2-A3 BC1000F2-A4 BC1000F4-A1 BC1000F4-A3 BC1000F4-A4 BC1000S-44 BC1000S2-M1 BC1000S2-M2 BC1000S2-M3 BC1000S2-M4 BC1000S2-M5 BC1000S4-A1 BC1000S4-A3 BC1000S4-A4 BC1000SX1 BC1500F2-B1 BC1500F2-B3 BC1500F2-B4 BC1500F4-B1 BC1500F4-B3 BC1500F4-B4 BC1500H42-G1 BC1500H42-G3 BC1500H42-G4 BC1500R21-K2 BC1500R21-K4 BC1500R42-G1 BC1500R42-G3 BC1500R42-G4 BC1500S2-K1 BC1500S2-K2 BC1500S2-K3 BC1500S2-K4 BC1500S4-B1 BC1500S4-B3 BC1500S4-B4 BC1500S4L-A4 BC1500S4U-B4 BC1501S2-K3 BC2000H42-D1 BC2000H42-D4 BC2000R2T-P2 BC2000R2T-P3 BC2000R2T-P4 BC2000R2T-P5 BC2000R41-D1 BC2000R41-H4 BC2000R42-D1 BC2000R42-D4 BC2000S4-C1 BC2000S4-C3 BC2000S4-C4 BC2000S4A-D1 BC2000S4A-D3 BC2000S4A-D4 BC2000S4U-C1 BC2000S4U-W3 BC2000S4U-W4 BC2500R41-D1 BC2500R41-H4 BC2500R4T-H4 BC2500S4-C4 BC3000S4-S3 BC3000S4-S4 BC502A2V/S2V–T BC601A2V/S2V–T BC602A2V/S2V–T BC603A2V/S2V–T BC618A2V/S2V-T BC750A2L-R3 BC750A2L-R4 BC750S2-R1 BC750S2-R3 BC750S2-R4 BC750S2L-R5 BC751SX1 DFL1000-48 DFL500-48 DFL750-48 DL1000-48L DL1000-48S DL1500-48L DL1500-48S DL2000-48L DL2000-48S DL2500-48L DL2500-48S DL3000-48S DL500-48 DL750-48 DL950-48 DLB1000-27X1 DLB1000-36 DLB1000-44 DLB1000-45 DLB1000-46 DLB1000-47L DLB1000-47S DLB1250-45 DLB1500-45 DLB1500-46VA DLB1500-46VC DLB1500-47L DLB1500-47S DLB1500-47VA DLB1750-45 DLB2000-45 DLB2000-46VA DLB2000-46VC DLB2000-47L DLB2000-47S DLB2500-45 DLB2500-47S DLB3000-47L DLB3000-47S DLB500-36 DLB500-45 DLB500-47 DLB750-27X1 DLB750-36 DLB750-45 DLB750-47 DLB950-47 DS1500-48VA DS1500-48VB DS2000-48VA DS2000-48VB DS2500-48VA DS2500-48VB DS3000-48VA DS3000-48VB UASX1008 UASX1508 X1A0500 X1A0750 X1A1000 X1A1001 X1A1500 X1A1501 X1A2000 X1A2500 X1A3-1000 X1A6-1000 X1FA1000 X1FA1500 X1UA1500 X1UA2000 X1UA2500 X1UAM1500 X1UAM2000 X4A1000 X4A1500 X4A1501 X4A2000

Reference:

Bär Cargolift 1:101124863

Sörensen 1:20 907 305

Bär Cargolift 2:01.124863

Sörensen 2:20907305

Tags: Valve, Cartridge, Stift
