Gear pump, flow capacity 80 l / min (at 1000 rpm)/ min), with universal direction

Gear pump, flow capacity 80 l / min (at 1000 rpm)/ min), with universal direction

Gear pump, flow capacity 80 l / min (at 1000 rpm)/ min), with universal direction of rotation1, with shaft end according to ISO 14 (DIN 5462)

Manufacturer PRESKO

Manufacturer Code ZL.80.4

Pump suction port :1 ′ ′ / 90 ° / 38mm

 Angular suction port for connecting the suction hose to the oil tank and a hydraulic pump.

BASIC DATA Material galvanized steel Connection with male thread G 1 "(acc. to BSPP1) Connection on the suction hose side Φ 38 mm Tilt angle 90 ° Geometric working volume 80 cm3 / rev.Flow capacity (at 1000 rpm/ min) 80 l / min Maximum working pressure (continuous) 230 bar Direction of rotation1 universal Maximum speed (continuous) 2000 rpm/ min Drive shaft journal B8 × 32 × 36 ISO 14 (DIN 5462) Typical application trucks ADDITIONAL INFORMATION Suction connection G 1 "female thread (acc. to BSPP2) Discharge connection G 1" female thread (acc. to BSPP2)

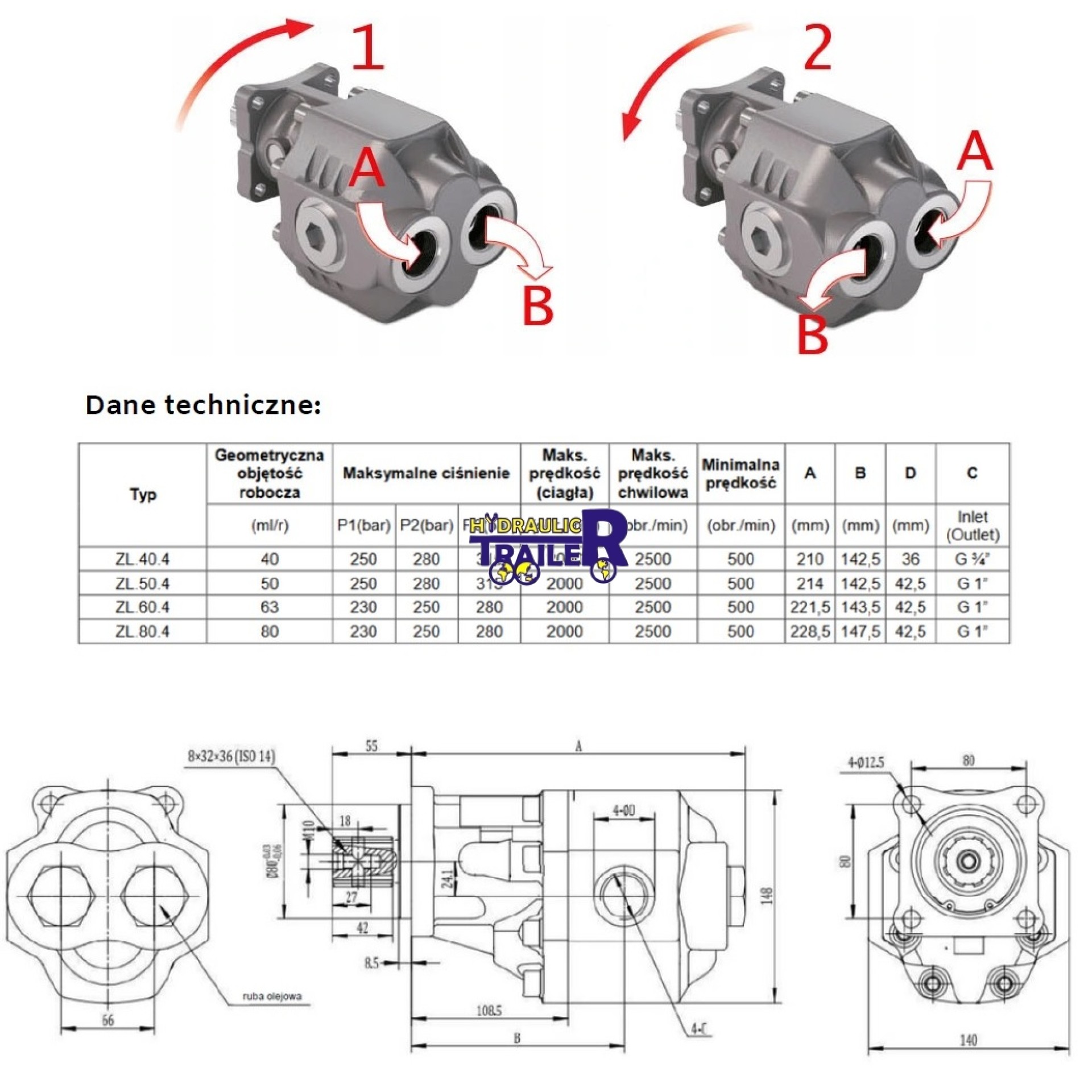

The direction of rotation is determined by looking at the pump from the shaft end.Right-hand direction - clockwise, left-hand direction - counter-clockwise.Running the pump in the wrong direction of rotation can damage the pump.

British Standard Pipe Parallel - British Standard Pipe Parallel inch parallel thread, one of the Whitworth Pipe (BSP) threads identified by the letter G (per ISO 228).

Can be used as a replacement for BINOTTO NPH-82 ISO, KAZEL KZ 3082B ISO, HYVA 082L - BI - 4H - C , CASAPPA FP40.87D0

200FZ0090DS 200FZ0090SS 200FZL090DS 200FZL090SS   200FSL090DS 200FSL090SS 200FZH075DS 200FZH075SS 200FZH085DS 200FZH085SS 200FZP075DS 200FZP075SS 200FZP085DS 200FZP085SS 200BPM0800S 200BPH0900S 200BLH0900S 3.1.2.6.073.X.0.X.0 3.1.2.6.084.X.0.X.0 3.1.2.9.090.X.5.00 3.1.53.080.0.0.0.0 3.1.55.090.0.P.0.0 3.1.55.080.0.0.L.0 3.1.55.090.0.0.L.0 3.1.7.1.083.X.0.X.0 22247073 22248073 22247082 22248082 22349090 22447073 22448073 22447087 22448087 22677082 22678082 22677073 22678074 22677087 22678087 14571224 14562091 14562325 082L-BI-4H5-2S 082L-BI-4H5-2R 082L-BI-4H BLGP82BI4HRP 10502810825 10504810821 10592810826 10501110735 10501110744 10501110824 10501110833 10501110904 10501110913 10503310908 10503320906 10503340902 10501210734 10501210743 10501210841 1050121085
